浪涌保护器 电源防雷器 ERICO TSG11302S

发布时间:2018-03-13  来源:凯威防雷

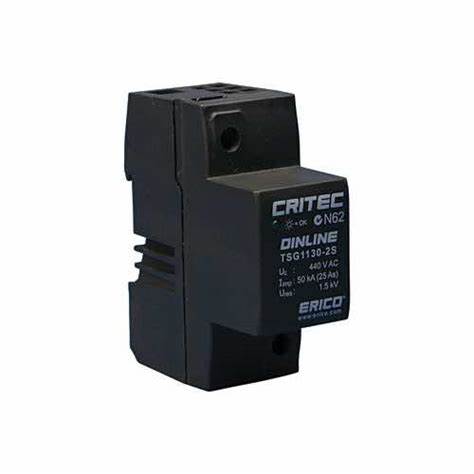

浪涌保护器 电源防雷器 ERICO TSG11302S
品牌:ERICO ,原产地:ERICO澳大利亚工厂

Catalog Number TSG11302S TSG11302S120V
Nominal System Voltage (Un) 240 VAC 120 VAC
Max Continuous Operating Voltage (Uc) 440 VAC 150 VAC
Voltage Protection Level (Up) 1500 V @ 3 kA 2300 V @20 kA 1500 V @ 3 kA 2300 V @20 kA
Max Discharge Current(lmax) 130 50 130 50
Follow Current Extinguishing Capability Un 43kA 43kA
Impulse Current (limp) 50kA 10/350 μs 50kA 10/350 μs
Max Operating Current 2.2mA 2.2mA
Protection Modes Single Single
Technology Triggered Spark Gap Triggered Spark Gap
Frequency 50-60Hz 50-60 Hz
Enclosure Material UL® 94V-0 Thermoplastic UL® 94V-0 Thermoplastic
Enclosure Rating IP 20 NEMA®-1 IP 20 NEMA®-1
Mounting 35 mm top hat DIN rail 35 mm top hat DIN rail
